Steelfinne offers a range of secure doors. Below are our most commonly specified options - however we also offer a tailored service to compliment your project. Ask us about customising these to suit your needs.
SF Door
Our SF Door is a steel framed door with a large glazing area to provide great visibility and security. Designed to accept a large range of glazing thicknesses.
-
50mm Thick
-
100x50x3mm Steel RHS Framing
-
Painted, Stainless, Hot-Dipped Galvanised
-
Secure
-
Meal hatch, view panel, drop bolt, kick plate, air grille, solid infills. Pressed or flat glazing frames
-
As per your project requirements
GS Door
Our GS Door is a heavy duty door with internal steel framing and ply infills, wrapped in steel sheets.
-
55mm Thick
-
50x50x3mm steel RHS framing, marine ply infill, galvanised steel sheet wrapped both sides and laminated to core
-
Painted, Stainless
-
Secure
-
Meal hatch, view panel, drop bolt, kick plate, air grille
-
As per your project requirements
SW Door
Our SW Door is similar to our GS door, without internal steel framing making for a lighter but still secure door option.
-
55mm Thick
-
50mm marine ply infill, galvanised steel sheet wrapped both sides and laminated to core
-
Painted, Stainless
-
Secure
-
Meal hatch, view panel, drop bolt, kick plate, air grille
-
As per your project requirements
SP Door
Our SP Door is a solid ply door - our lightest standard offering that still does not compromise on security.
-
50mm Thick
-
50mm Solid Plywood
-
Painted
-
Secure
-
Meal hatch, view panel, drop bolt, kick plate, air grille
-
As per your project requirements
CP Door
Our CP Door is a ply door with zincanneal interlayers which offers an extra layer of security over our solid ply door. Sometimes referred to as the “Queensland Door”.
-
50mm Thick
-
Laminated plywood core and face with 2mm zincanneal interlayers.
-
Painted
-
Secure
-
Meal hatch, view panel, drop bolt, kick plate, air grille
-
As per your project requirements
Fire Rated Door
Our secure fire rated door leaf has been tested in accordance to AS 1530.4-2005 to offer both security and fire resistance where a regular fire door can’t.
-
71mm Thick
-
E-Core core, ply facing with zincanneal interlayers.
-
Painted
-
Secure
-
Fire Rated View Panel
-
Certified lock sets include the Brink 5020 and Brink 3020 with Steelfinne Hardware.
Secure Louvre Doors
-
100mm thick
-
100x100x3mm steel RHS framing, 50x50x3mm steel SHS bars.
-
Painted, hot-dipped galvanised
-
Secure
-
Optional internal K700 rolling bars. Optional Crimsafe mesh to either side.
-
As per your project requirements
Our Secure Yard doors are often specified on the rear of cell yards. They are a heavy duty weather resistant solution to enclosing yards.
Secure Yard Doors
-
50mm thick
-
100x50x3mm steel RHS framing with 3mm pressed steel louvres
-
Painted, stainless, hot-dipped galvanised
-
Secure
-
Meal hatch, kick plate
-
As per your project requirements
Our Secure Louvre doors are steel framed doors with pressed louvre profiles. Allowing air flow while maintaining your secure line.

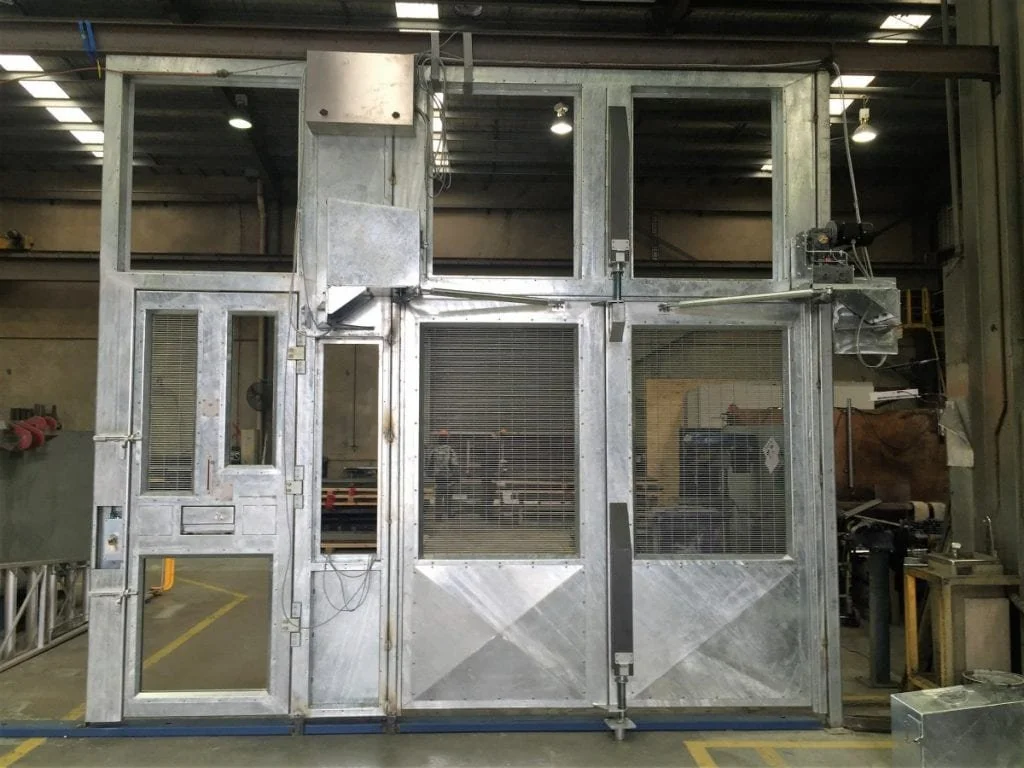

Secure Gates
-
50mm Thick
-
100x50x3mm Steel RHS Framing, secure mesh infills.
-
Painted, stainless, hot-dipped galvanised
-
Secure
-
Solid infills, pressed or flat glazing frames.
-
As per your project requirements.
Our Secure Gates offer great line of sight and weather resistance while withstanding all the requirements that a secure gate should.
